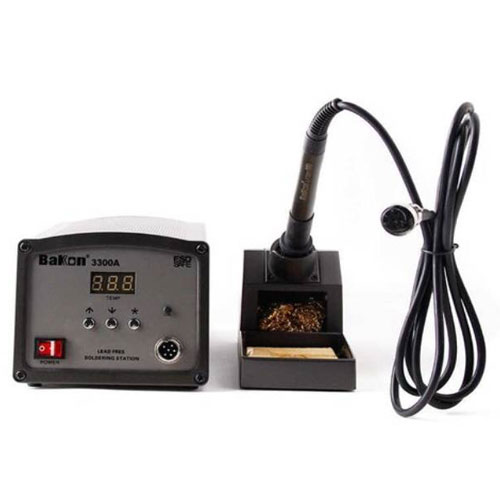

BK3300A 150W Lead-Free ESD Solder Station


Model BK3300A
Power Supply AC220V/50HZ/AC110V 60HZ
Set Temperature Range 50?600?
No load Power ≤10W
Max Power 150W
Temperature Stability ±2?
Tip to Ground Resistance ?2Ω
Tip to Ground Potential ?2mV
Dimensions L215*W126*H106 MM
Temp Proofread Method Digital
Hand Piece Cord Length 1.7 m
Temperature lock Yes
Automatic sleeping Yes
Carton Size/weight 240*230*130mm/5kgs
Outside Carton Size/weight 6pcs/590*505*325mm/31kgs
Subscribe TechZilo Newsletter



  • High frequency heating theory, heating up very fast.
  • sensitive Temperature sensor, fast re-heating.
  • Tip separated with heater, easy to replace tips.
  • Aluminum alloy housing, ESD design.
  • Inside cooling fan, prevent over-heating, long life time.
  • Plug type heater, easy to replace.
  • Auto sleep after no actions for 20 minutes, and auto shutdown in 1 hour.
  • For heavy duty soldering work, such as LED string, solar panel, connectors etc.
