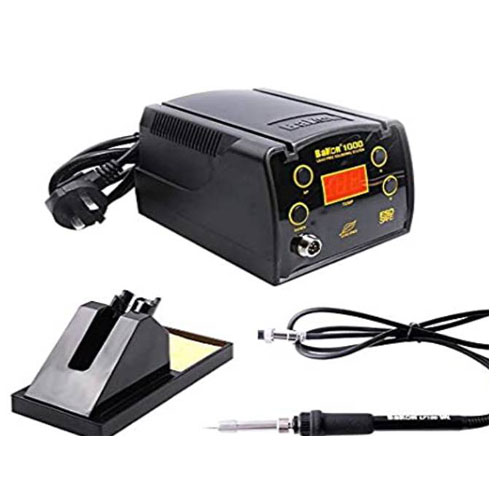

BK1000 High Frequency 90W Solder Station


Model BK1000
Power Supply AC220V/50Hz
Set Temperature Range 200?500?
No load Power ≤10W
Max Power 90W
Temperature Stability ±2?
Tip to Ground Resistance ?2Ω
Tip to Ground Potential ?2mV
Dimensions L145*W125*H95 MM
Temp Proofread Method Digital
Temperature lock Yes
Carton Size/weight 268*232*158mm/1.3kgs
Outside Carton Size/weight 12pcs/545*490*415/17.1kgs
Subscribe TechZilo Newsletter



  • High frequency heating theory, heating up very fast.
  • sensitive Temperature sensor, fast re-heating.
  • Tip separated with heater, easy to replace tips.
  • Aluminum alloy housing, ESD design.
  • Inside cooling fan, prevent over-heating, long life time.
  • Auto sleep/ auto shutdown(optional function).
  • For heavy duty soldering work, such as LED string, wire cable, connectors etc.
