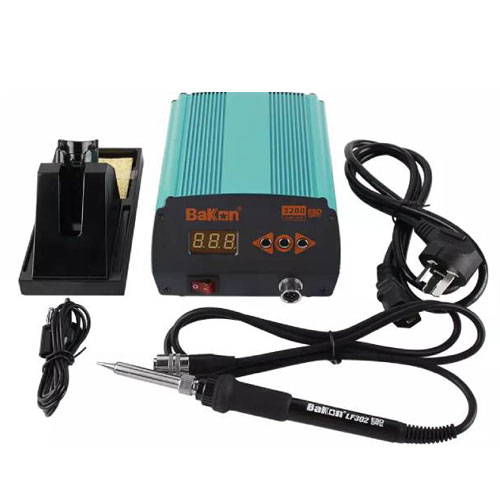

BK3200 High Frequency 200W Solder Station


Model BK3200
Power Supply AC220V/50Hz
Set Temperature Range 200?500?
No load Power ≤10W
Max Power 120W
Temperature Stability ±2?
Tip to Ground Resistance ?2Ω
Tip to Ground Potential ?2mV
Dimensions L160*W126*H75 MM
Temp Proofread Method Digital
Temperature lock Yes
Automatic sleeping optional
Carton Size/weight 240*230*130mm/1.6kgs
Outside Carton Size/weight 8pcs/510*490*280mm/14kgs
Subscribe TechZilo Newsletter



  • High frequency heating theory, heating up very fast.
  • sensitive Temperature sensor, fast re-heating.
  • Tip separated with heater, easy to replace tips.
  • Aluminum alloy housing, ESD design.
  • Inside cooling fan, prevent over-heating, long life time.
  • Auto sleep/ auto shutdown(optional function).
  • For heavy duty soldering work, such as LED string, wire cable, connectors etc.
