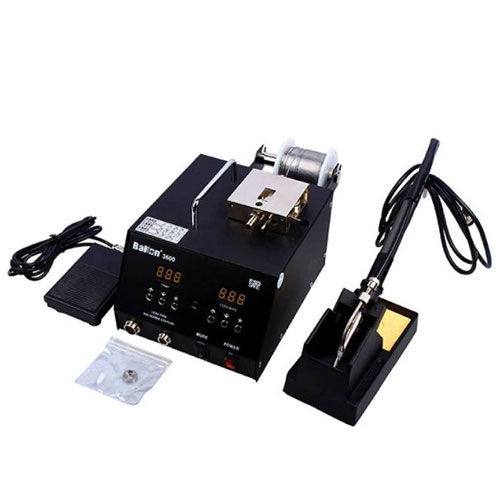

BK3600 150W Soldering Station With Self Feeder


Model BK3600
Set Temperature Range 50?600?
Tin adjustable Yes
Max Power 150W
Temperature Stability ±2?
Input Voltage AC220V
Tip to Ground Resistance ?2Ω
Tip to Ground Potential ?2mV
Feeding Speed Appr.14mm/s? 35mm/s
Feeding Volume (Auto Mode) 0.5 ? 123mm
Feeding Interval Time 0 -3.5s
Diamond of wire usable 0.4, 0.5,0.6,0.8,1.0,1.2,1.6
Carton Size/weight 300*285*160mm/7.2kgs
Subscribe TechZilo Newsletter



  • High frequency current rapid heating and quick thermal recovery,suaitable for lead free soldering.many types of tips are available for replacement.
  • Micro computer control; set tempreture only by pressing keys; tempreture clibrated digitally; more function such as auto sleeping; auto shut off.
  • Auto and manual soldering wire feeding optional, using imported motor, feeding speed, feeling volumes, interval time could be regulated.
  • Two types of feeding hose optional, easy to use. Long hose suitable for fixed soldering.
  • Pedal switch or manual switch to choose from Soldering direction may be changed as needed and soldering can be agile and convenient.
